Detalles del producto
Lugar de origen: PORCELANA
Nombre de la marca: ENWEI
Certificación: CE
Número de modelo: Modelo 3190
Documento: 3190 solar camera trailer.pdf
Pago y términos de envío
Cantidad de orden mínima: 1
Detalles de empaquetado: Un 20GP puede cargar 4 unidades, un 40HQ puede cargar 8 unidades
Tiempo de entrega: Dentro de los 30 días
Condiciones de pago: T/T
Capacidad de la fuente: 200 unidades por mes
Paneles solares: |
3*400W |
Baterías: |
4*200AH, DC12V |
Mástil: |
6 metros, elevación manual |
Controlador: |
MPPT 60A |
Inversor: |
1000W, onda sinusoidal pura, salida de CA de 220V |
Patas de soporte: |
4 pcs |
Cables: |
Cat6 y cable de alimentación |
Llantas: |
R14 |
Temperatura de trabajo: |
-35 a 60 grados Celsius |
Trailer trasero: |
Está equipado con funciones de frenado, inversión y dirección. |
Paneles solares: |
3*400W |
Baterías: |
4*200AH, DC12V |
Mástil: |
6 metros, elevación manual |
Controlador: |
MPPT 60A |
Inversor: |
1000W, onda sinusoidal pura, salida de CA de 220V |
Patas de soporte: |
4 pcs |
Cables: |
Cat6 y cable de alimentación |
Llantas: |
R14 |
Temperatura de trabajo: |
-35 a 60 grados Celsius |
Trailer trasero: |
Está equipado con funciones de frenado, inversión y dirección. |

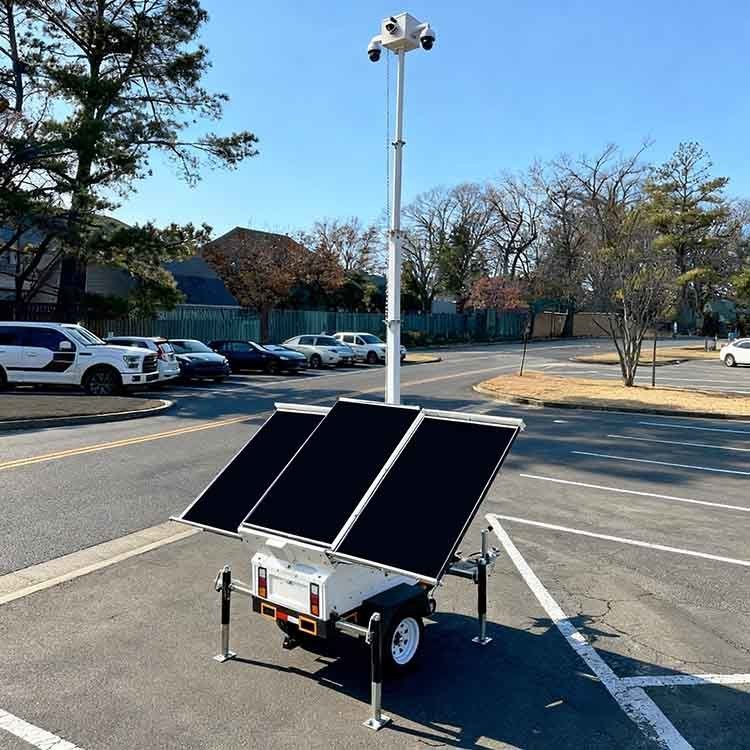

Solar-Powered Surveillance Trailer for Construction Site Security Monitoring
1. Ultimate convenience, rapid deployment.
2. Off-grid operation, green and environmental protection.
3. Remote real-time management: Through 4G/5G wireless networks, managers can remotely view the screen in real time on their computers or mobile phone apps.
4. The material of the cold-galvanized steel plate trailer body is powder coating on the surface, which has excellent anti-corrosion effect and is suitable for working in various environments.
Applications:
1. Remote area project: For remote construction sites with weak infrastructure, this solution is the only feasible and efficient monitoring method.
2. Monitor the progress of the project.
3. Monitor the main entrances and exits, material warehouses, living areas, etc., and record the entry and exit of people and vehicles.
4. Military patrols, border security.
Specification of Solar-Powered Surveillance Trailer:
Solar panels | 3*400W |
Batteries | 4*200Ah, 12V |
Mast | 6m, manual lifting |
Controller | 60A MPPT |
Inverter |
1000W, pure sine wave |
Size | 1850*1350*2150mm |
Weight | about 1000kg |
